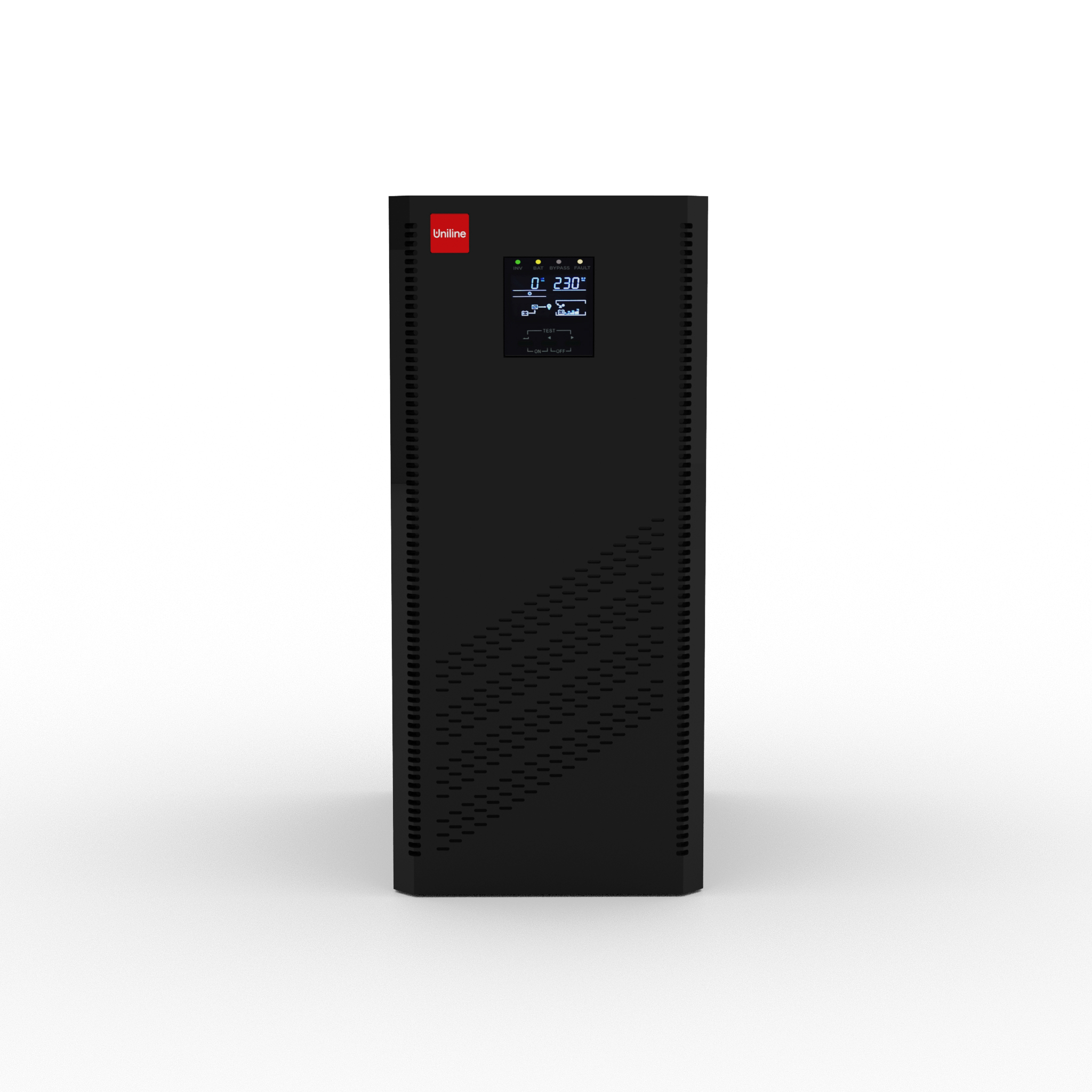

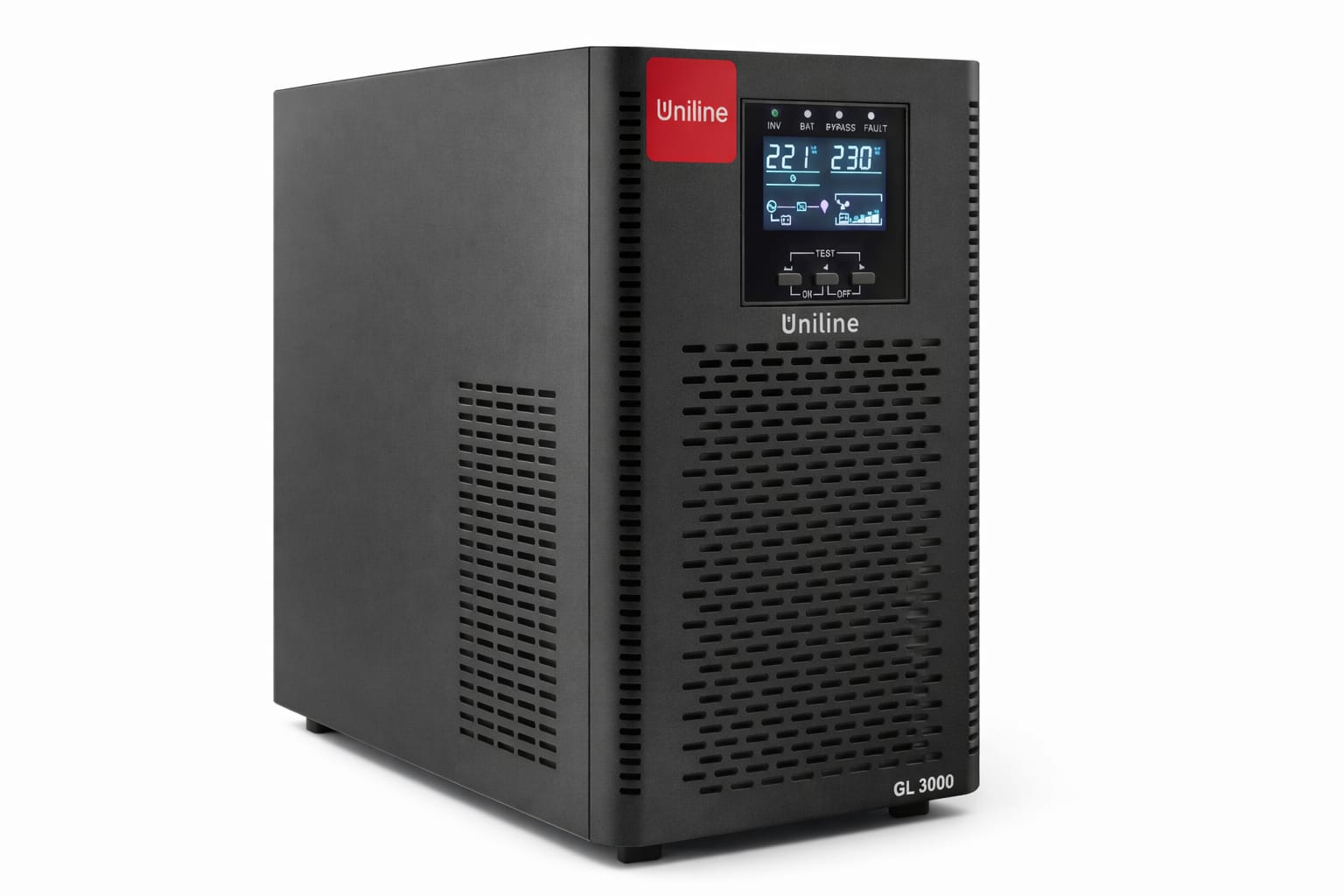

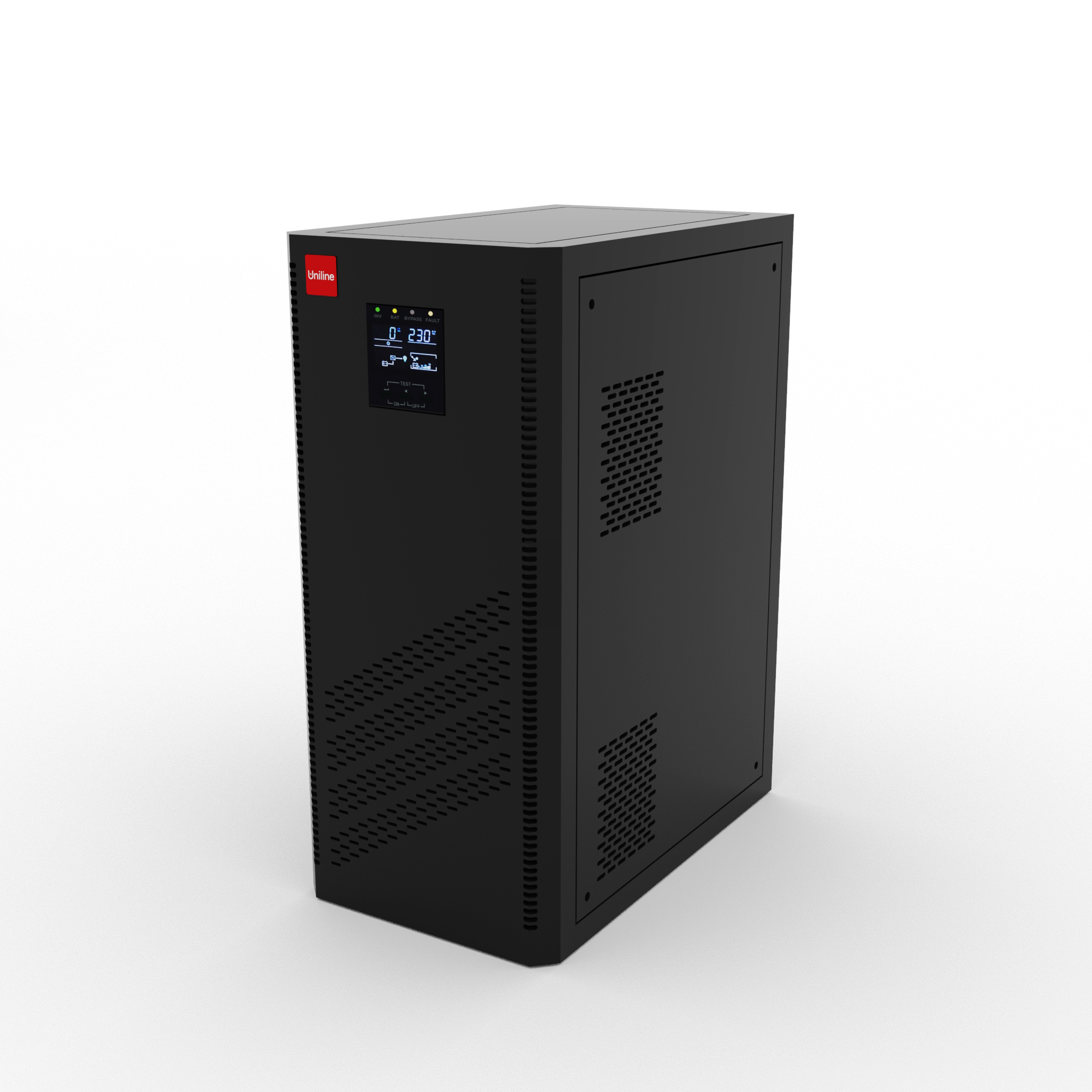

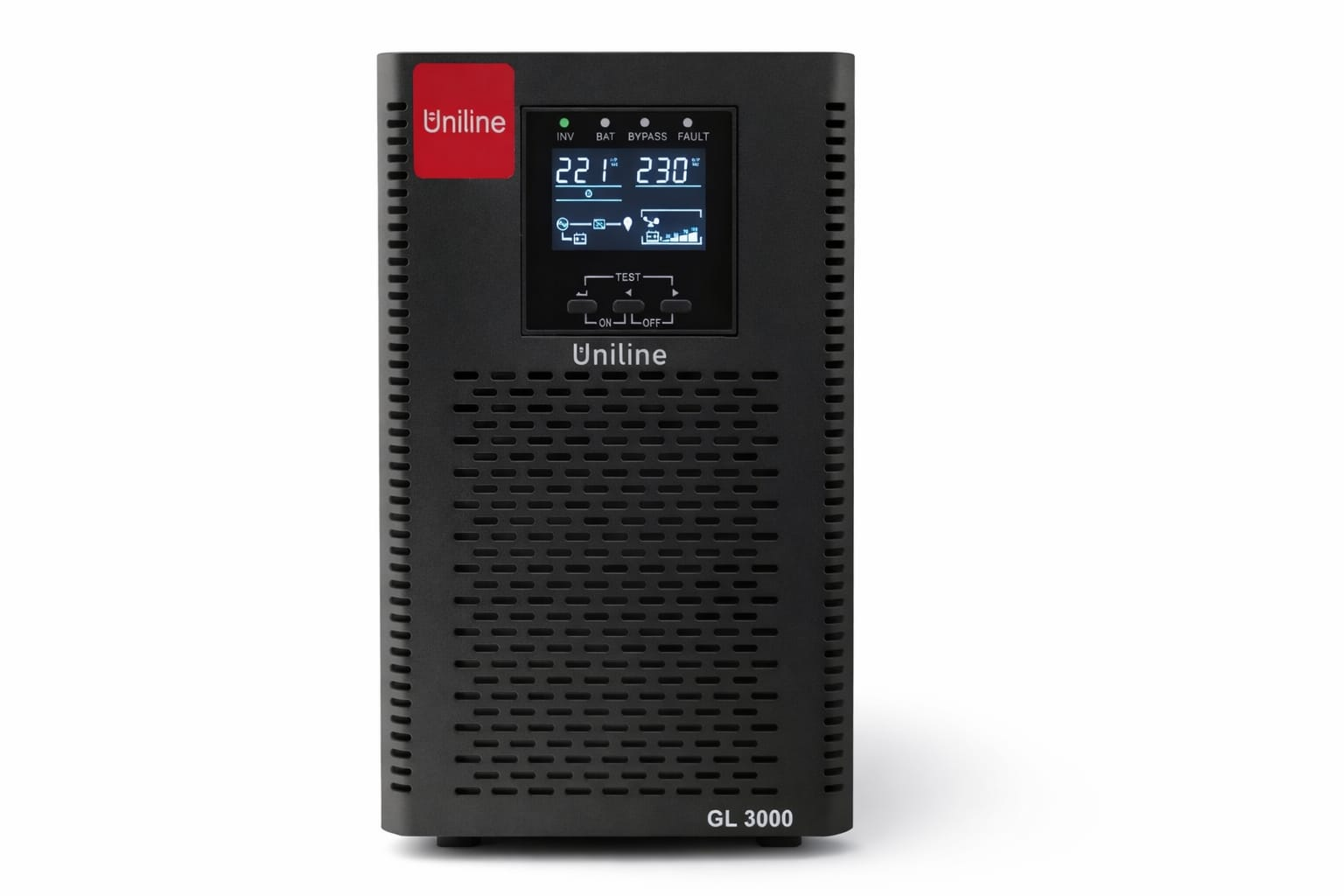

The Green Line Series is the mighty turbo in the single phase ONLINE family of uninterruptible power supplies by UNILINE. The Green Line Series provides reliable protection, also high-end applications and is extensively equipped to master all eventualities.
True on-line double IGBT (Rectifies & Inverts both) with Integrated Static Bypass mechanism. In normal operation, the Green Line Series converts the mains AC voltage into DC voltage which supplies a battery and an inverter with energy. The inverter generates a sine wave AC voltage which is perma- nently available at the output. If and when power problems strike, the battery delivers the required power to the inverter. The additional Bypass system integrated into the UPS device guarantees an unprecedented level of power supply security. In overload conditions the Bypass system automatically switches mains power directly through to the user. Using module design to improve reliability of the UPS, also simplify service maintenance.
1000-3000 VA / 2400W
|Input Normal Voltage||
|Input Voltage Range||
110V-280V(0-60% Load), 160V-280V(100% Load)
|Battery Backup Time||
Dependent on the capacity of Batteries(Long Backup Time)
|Battery Recharge Time||
Charger to 90% Battery Capacity in 3 Hrs (Standard)
|Transfer Time Typical||
0ms (Normal Mode to Battery Mode), 5ms (Normal Mode to Bypass Mode)
Over temperature, Load on battery, Battery on charge, Low battery, Mains on Overload, Fan speed control
Actively Audible Alarm for Utility Failed/ Battery Low/ Overload Condition
0~95% Humidity, Non-Condensing
