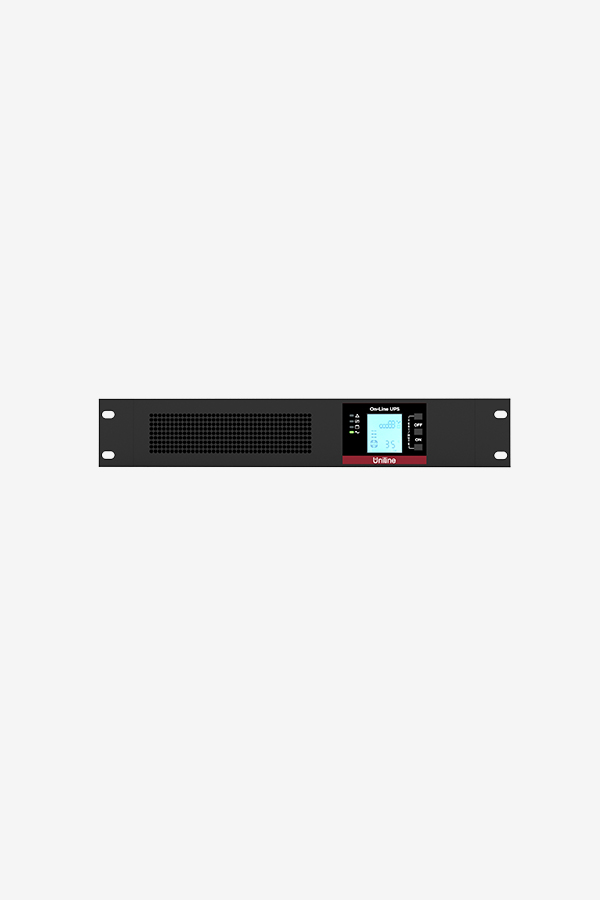

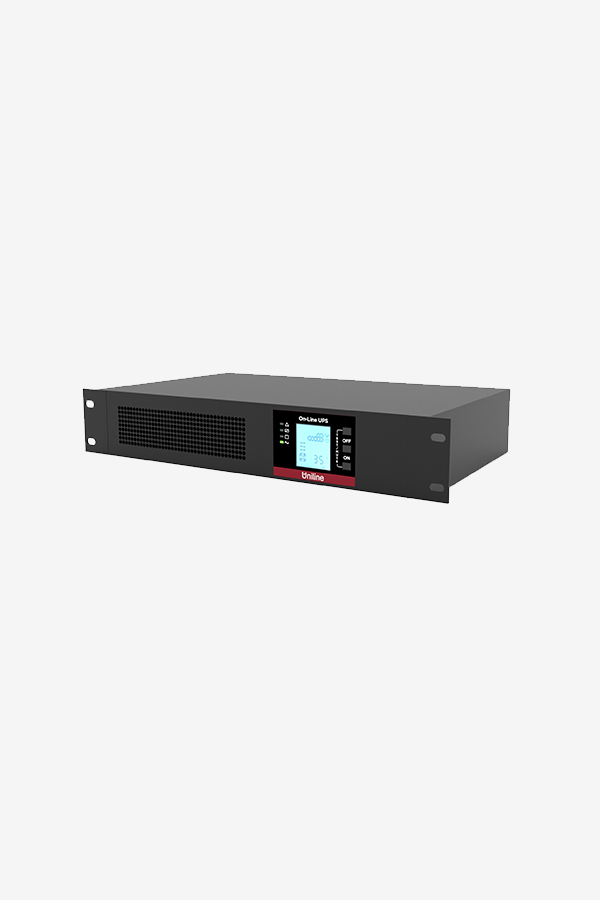

Greenline RM – 1 to 10KVA

The Green Line Series is the mighty turbo in the single phase ONLINE family of uninterruptible power supplies by UNILINE. The Green Line Series provides reliable protection, also high-end applications and is extensively equipped to master all eventualities.

True on-line double IGBT (Rectifies & Inverts both) with Integrated Static Bypass mechanism. In normal operation, the Green Line Series converts the mains AC voltage into DC voltage which supplies a battery and an inverter with energy. The inverter generates a sine wave AC voltage which is perma- nently available at the output. If and when power problems strike, the battery delivers the required power to the inverter. The additional Bypass system integrated into the UPS device guarantees an unprecedented level of power supply security. In overload conditions the Bypass system automatically switches mains power directly through to the user. Using module design to improve reliability of the UPS, also simplify service maintenance.


  • Pure sine wave output
  • LCD display design
  • Guarantees high reliability
  • Inbuilt protection for Surge Suppression
  • EMI/RFI Filters
  • Selectable various output range and operating mode
  • Cold start function
  • Inbuilt static bypass enhance better protection for critical load
  • Built-in dry contact / RS-232 / EPO communication port
  • SNMP V1/V2 management for Remote Monitoring
  • Tower Type
  • Enable to extend runtime with scalable external battery pack
  • Overload, short-circuit, and overheat protection
  • Generator Compatibility
  • Compact size with high overall efficiency
  • IP20 Protection

1000-10000 VA / 10000W

Input Normal Voltage

230V AC

Input Voltage Range

120V-300V(0-50% Load), 170V-280V(100% Load)

Input Frequency

50/60 Hz

Output Voltage

220/230/240V AC(+/-1%)



Output Frequency

45-55 Hz

Output Waveform


Crest Factor


Battery Backup Time

Dependent on the capacity of Batteries(Long Backup Time)

Battery Recharge Time

Charger to 90% Battery Capacity in 3 Hrs (Standard)

Transfer Time Typical

0ms (Normal Mode to Battery Mode), 5ms (Normal Mode to Bypass Mode)


Over temperature, Load on battery, Battery on charge, Low battery, Mains on Overload, Fan speed control

Audible Alarm

Actively Audible Alarm for Utility Failed/ Battery Low/ Overload Condition

Operating Temperature

0-40 °C

Relative Humidity

0~95% Humidity, Non-Condensing

  • Commercial
  • Infrastructure
  • Commercial
